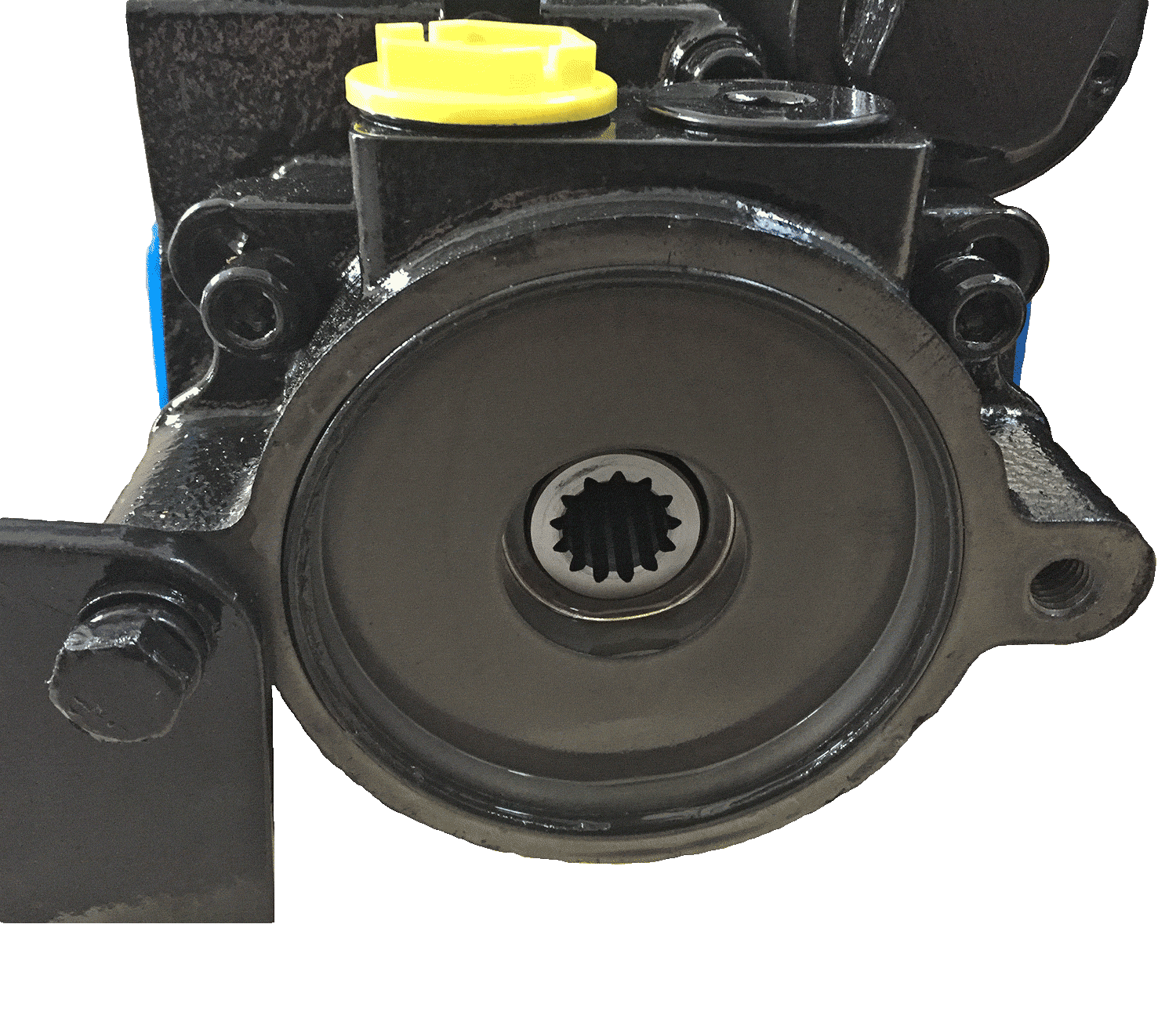

PVS aux connection
Designed from 20 series pumps with gerotor type of charge pump
SAE thru drives according to international standards

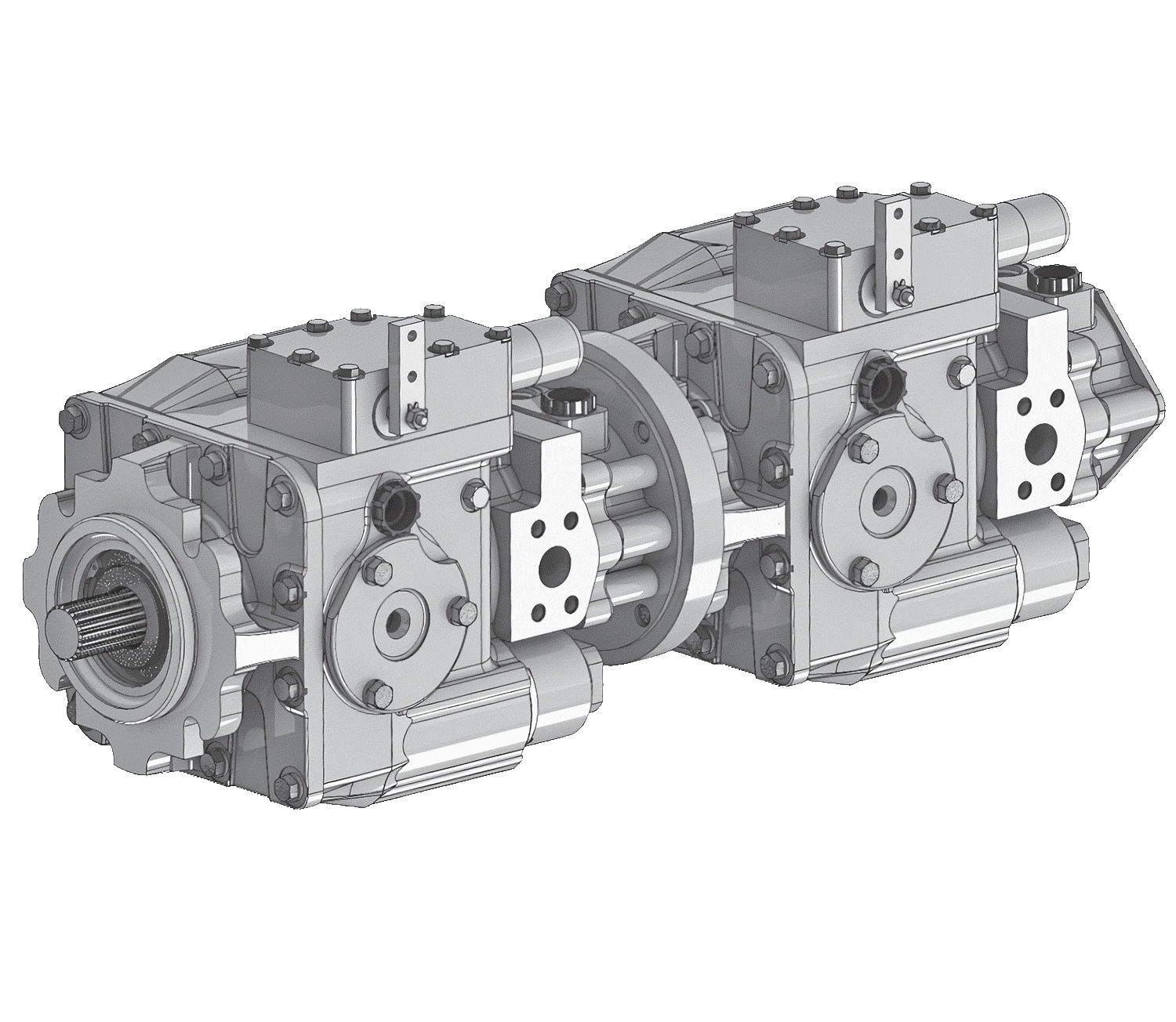

Available to connect with another PVS pump or gear pumps
Rotating parts interchangeable with standard PV pumps
Parameter |
Dimension |
FRAME SIZE | ||||||||
| PVS 22 | PVS 23 | PVS 112 | ||||||||
| Displacement | cm3 | 69,8 | 89 | 110,8 | ||||||
| Max. working pressure | MPa | 35 | ||||||||
| Charge pressure | MPa | 1,3 - 2,4 | ||||||||
| Max. pressure in case | MPa | 0,25 | ||||||||
| Maximum speed | min-1 | 2800 | 2590 | 3000 | ||||||
| Nominal speed | min-1 | 1500 | ||||||||
| Minimum speed | min-1 | 500 | ||||||||
| Weight | kg | 63 | 78 | 80 | ||||||
