PumpsPVS Pumps
Aux Connection
Axial piston pumps PVS aux connection — designed from 20 series pumps with gerotor type of charge pump. SAE thru drives according to international standards. Available to connect with another PVS pump or gear pumps. Rotating parts interchangeable with standard PV pumps.
Key Features
- Designed from 20 series pumps with gerotor type of charge pump
- SAE thru drives according to international standards
- Available to connect with another PVS pump or gear pumps
- Rotating parts interchangeable with standard PV pumps
Specifications
PVS Pump Specifications
| Parameter | Dimension | FRAME SIZE | ||
|---|---|---|---|---|
| PVS 22 | PVS 23 | PVS 112 | ||
| Displacement | cm³ | 69,8 | 89 | 110,8 |
| Max. working pressure | MPa | 35 | ||
| Charge pressure | MPa | 1,3 – 2,4 | ||
| Max. pressure in case | MPa | 0,25 | ||
| Maximum speed | min⁻¹ | 2800 | 2590 | 3000 |
| Nominal speed | min⁻¹ | 1500 | ||
| Minimum speed | min⁻¹ | 500 | ||
| Weight | kg | 63 | 78 | 80 |
Interested in this product?
Contact us for pricing, availability, and technical specifications.
Gallery
PVS 22 HDC

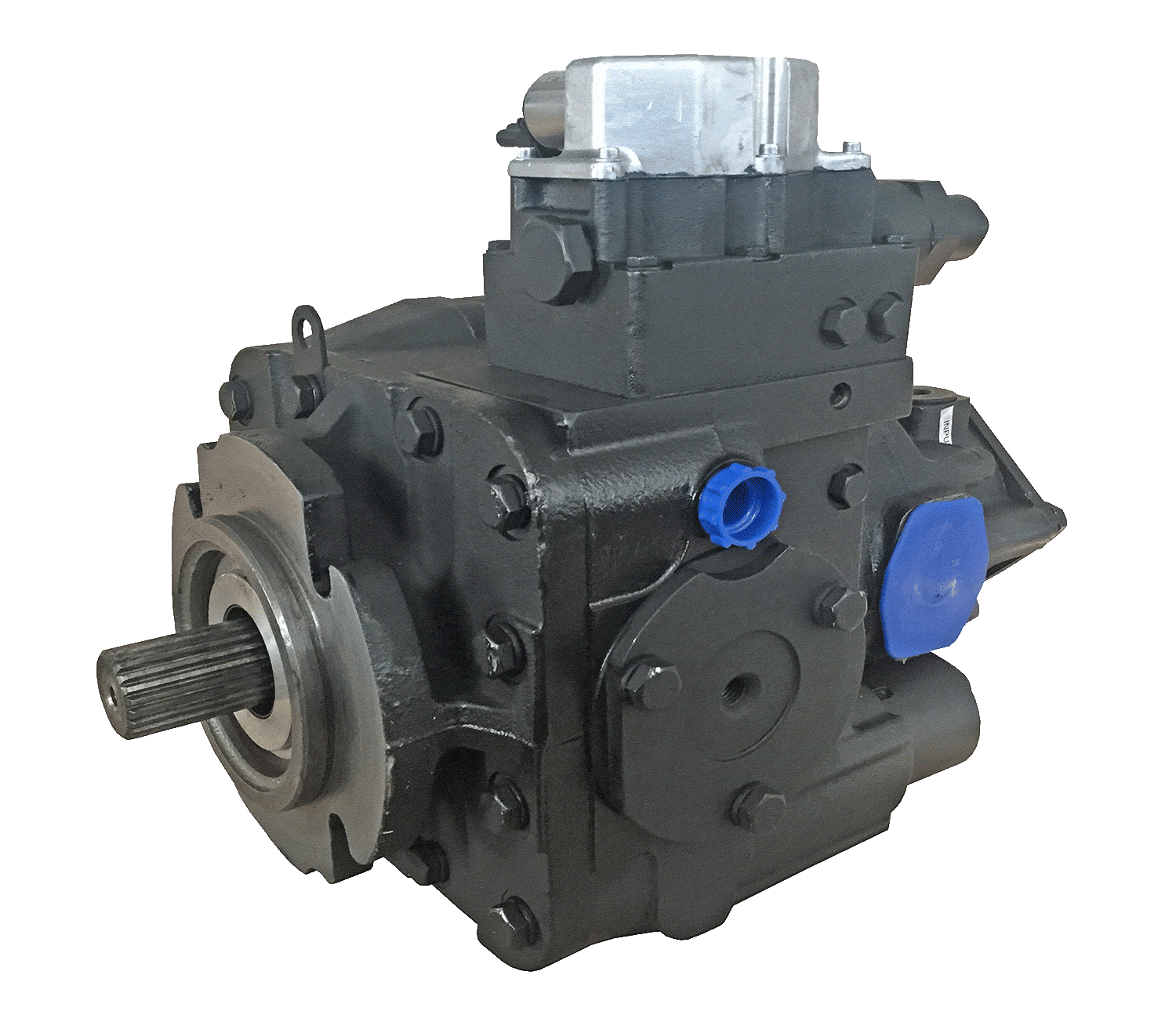

PVS proportional control

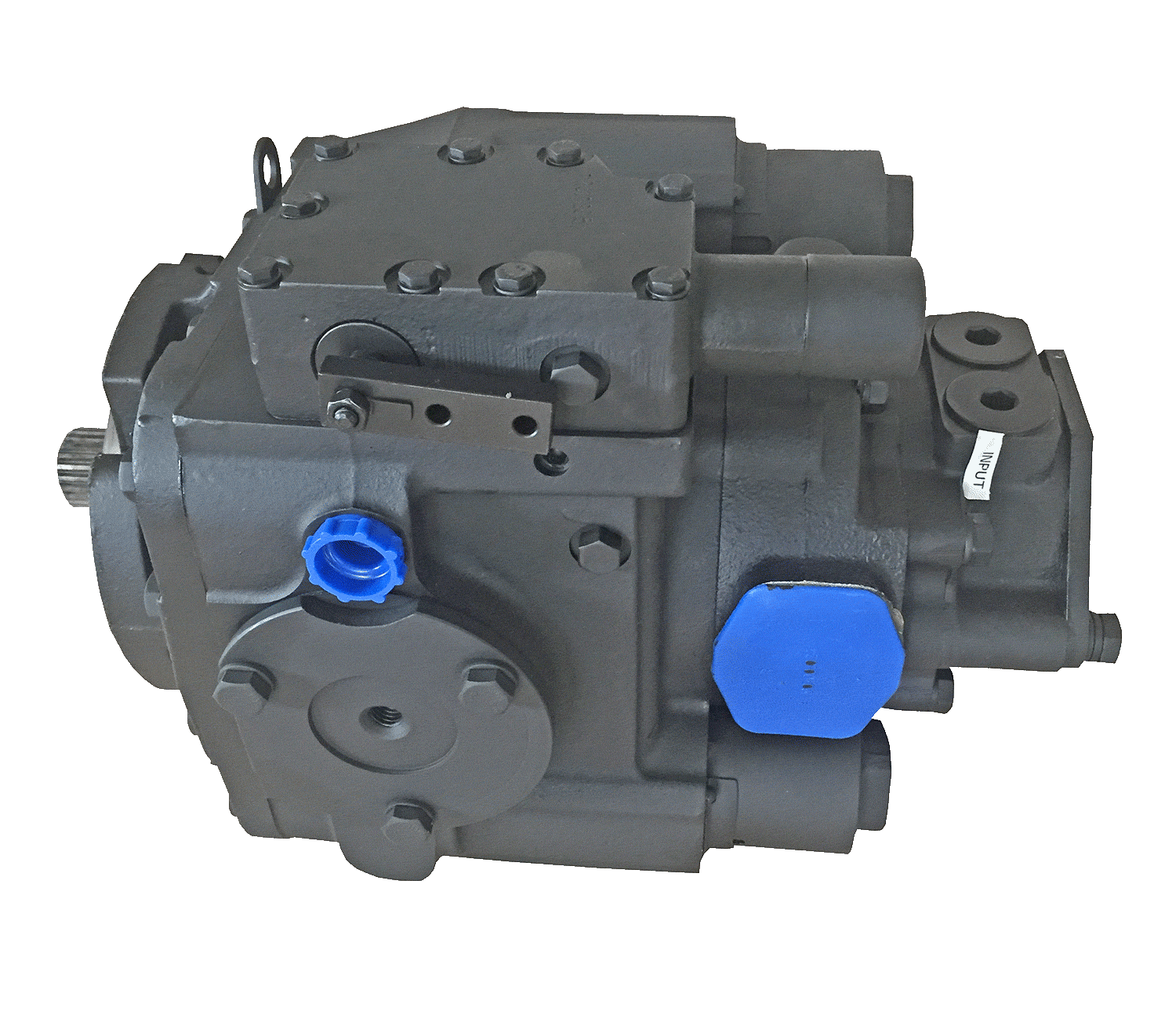

PVS 112

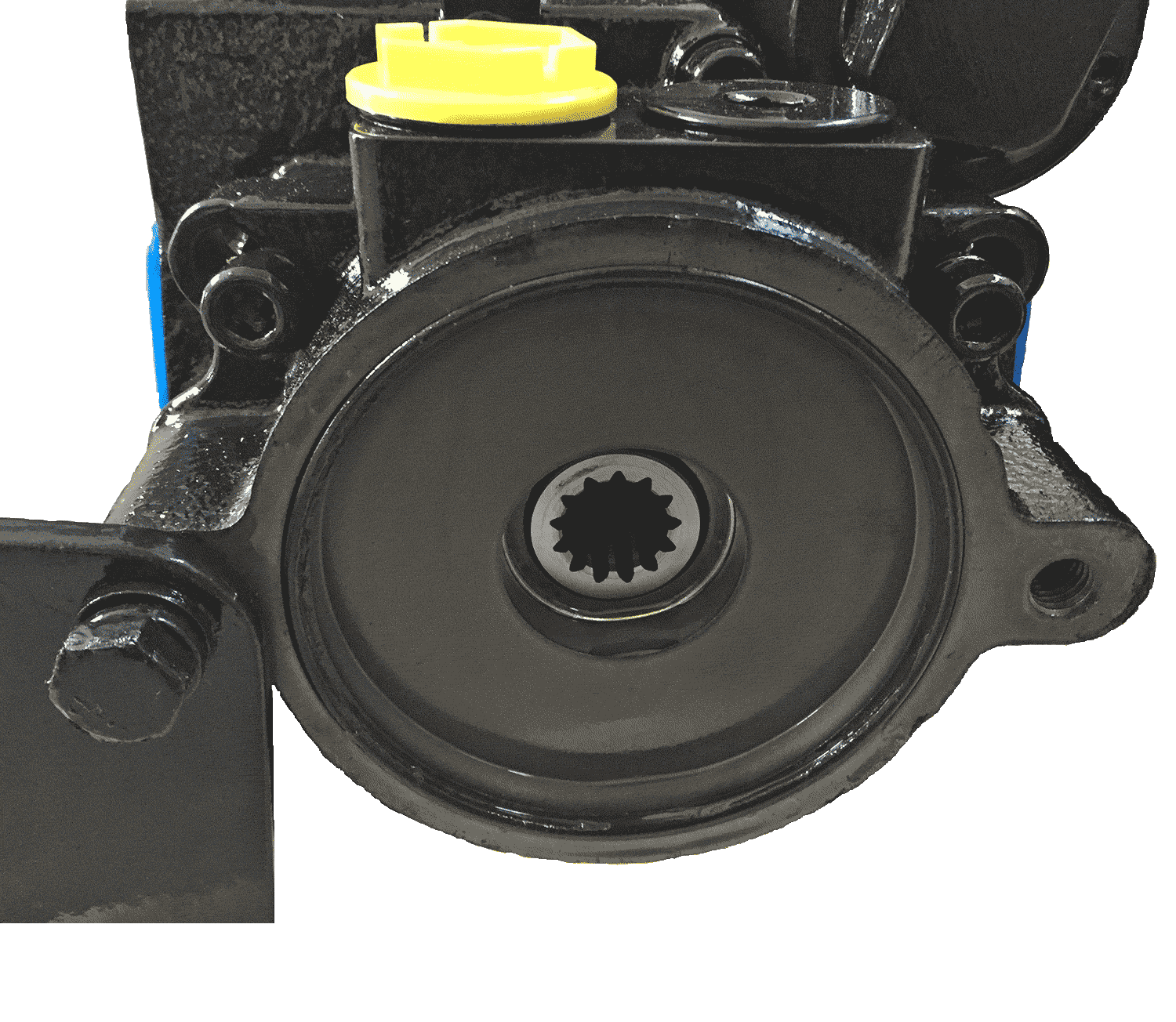

PVS detail

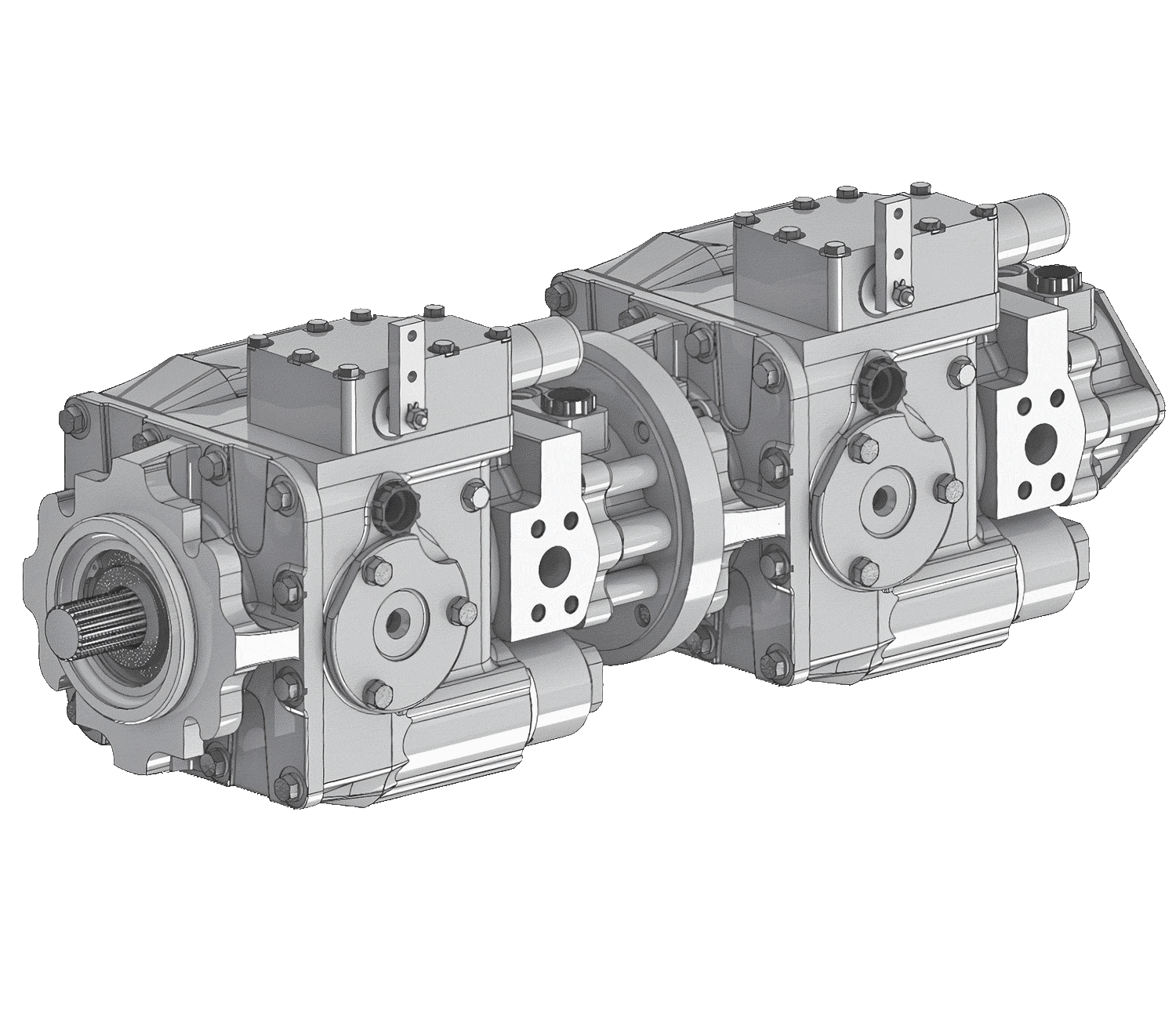

Tandem PV 23 - PV 23
